The airbag structure diagram

Performance requirement of the materials

1、.Performance requirements of Nylon tyre cord fabric

      (1)、Density of the nylon cord fabric is 95±5 strands per 10 cm.

      (2)、Tensile strength at break of the nylon cord fabric is ≥ 205.8 N per strand.

2、Mechanical performance of rubber
     (1)、Mechanical performance of the rubber is listed in the following table.

Table 1. Mechanical performances of the rubber

  (2)、The mechanical performances of the rubber after 16 hours of hot air aging at 70℃ are listed in the following table

Table 2 Mechanical performances of rubber after hot air aging

3、Workmanship of ship airbags: whole-wrapping explosion-proof type
4、Cord layers:


5、Models and specifications of nylon cord fabric: .

   Model:1400dtex/1260D Specifications:vl、v2，strength of a single strand ≥105N
      Model:1780dtex/1680D Specifications:v2，strength of a single strand ≥120N
      Model:2100dtex/1890D Specifications:v3，strength of a single strand ≥262N
      Note:To prevent counterfeit cord fabric, the buyers can choose the strength of cord fabric, whose price rises in proportion to its strength

6、Upgrading and launching diagram

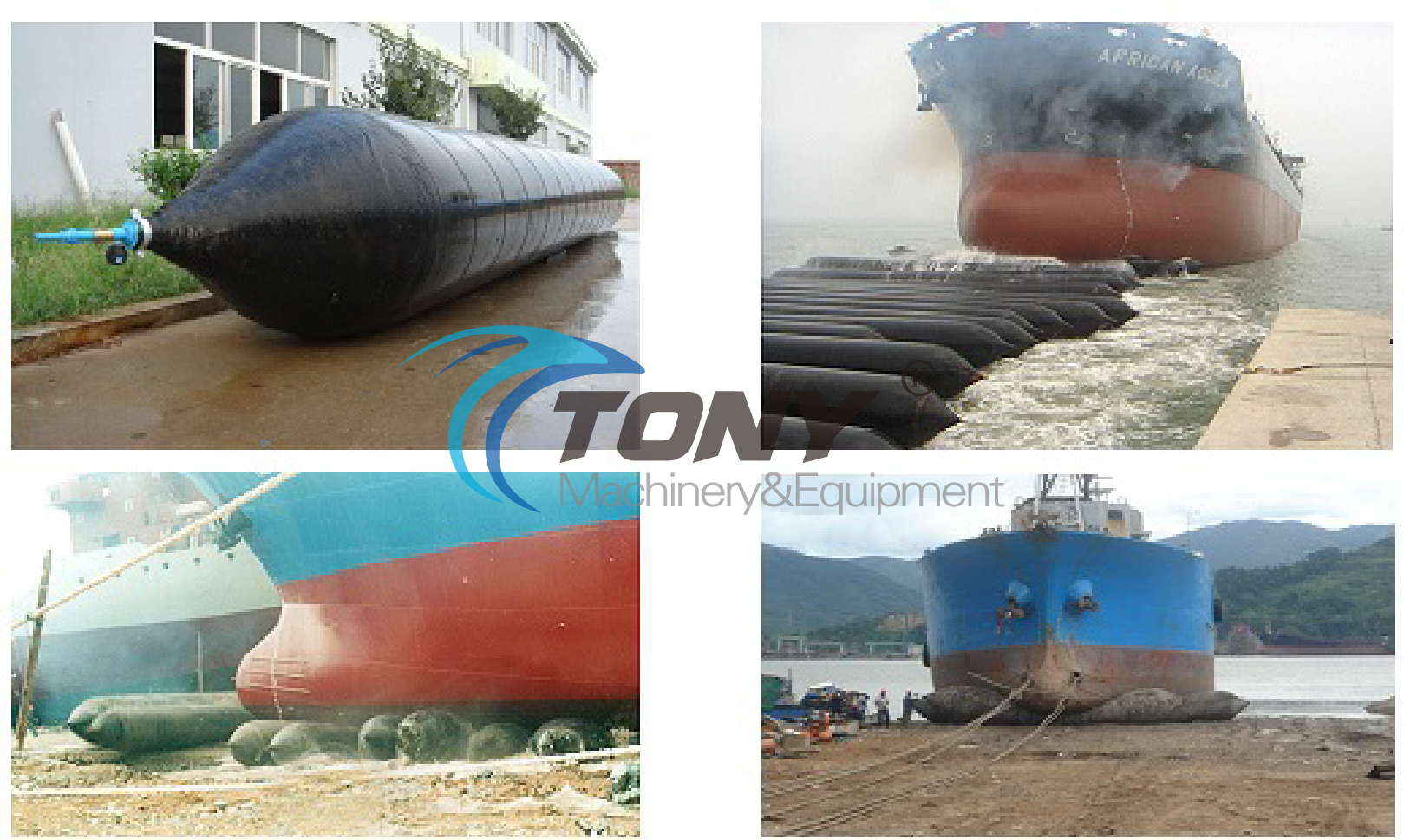

The photos of airbags
